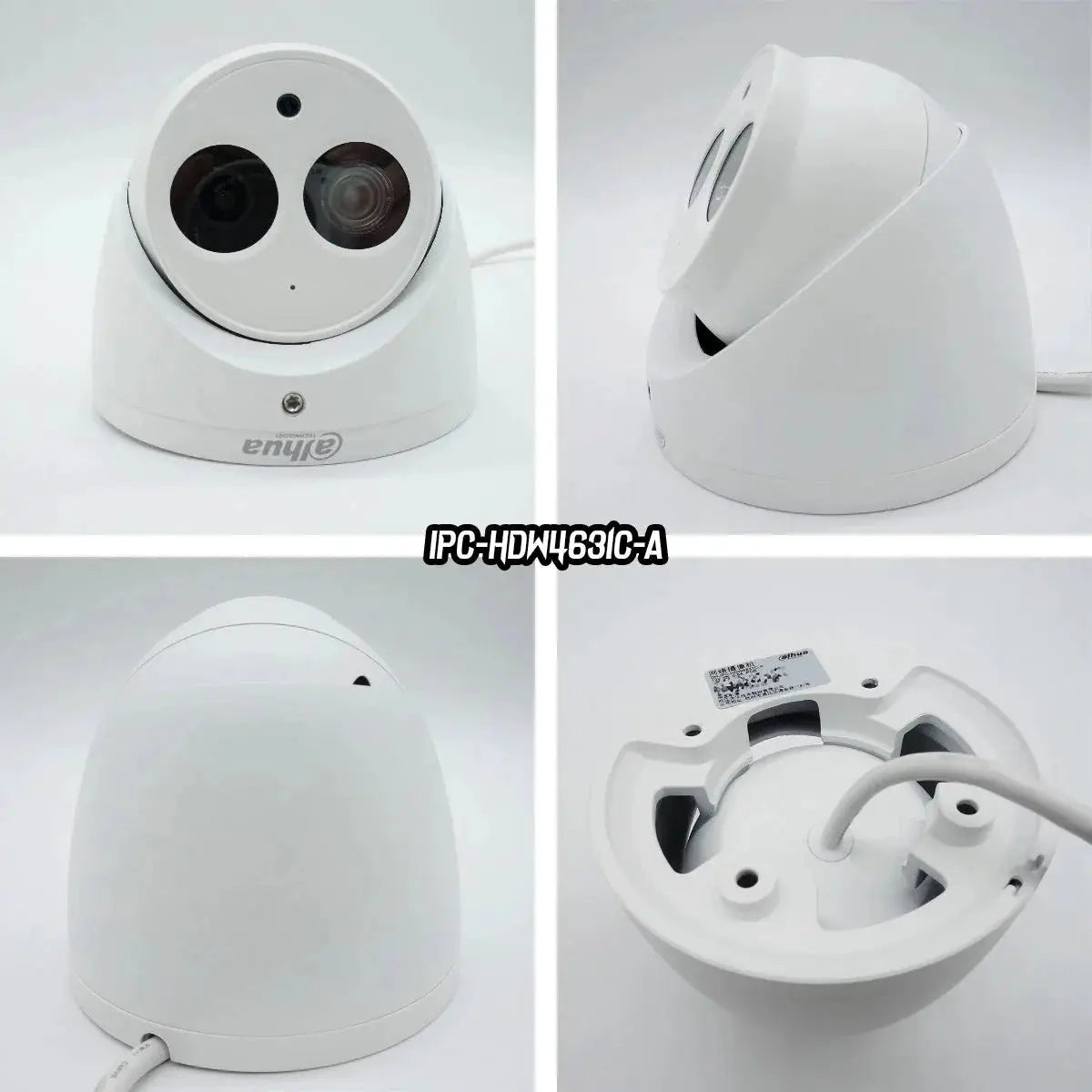

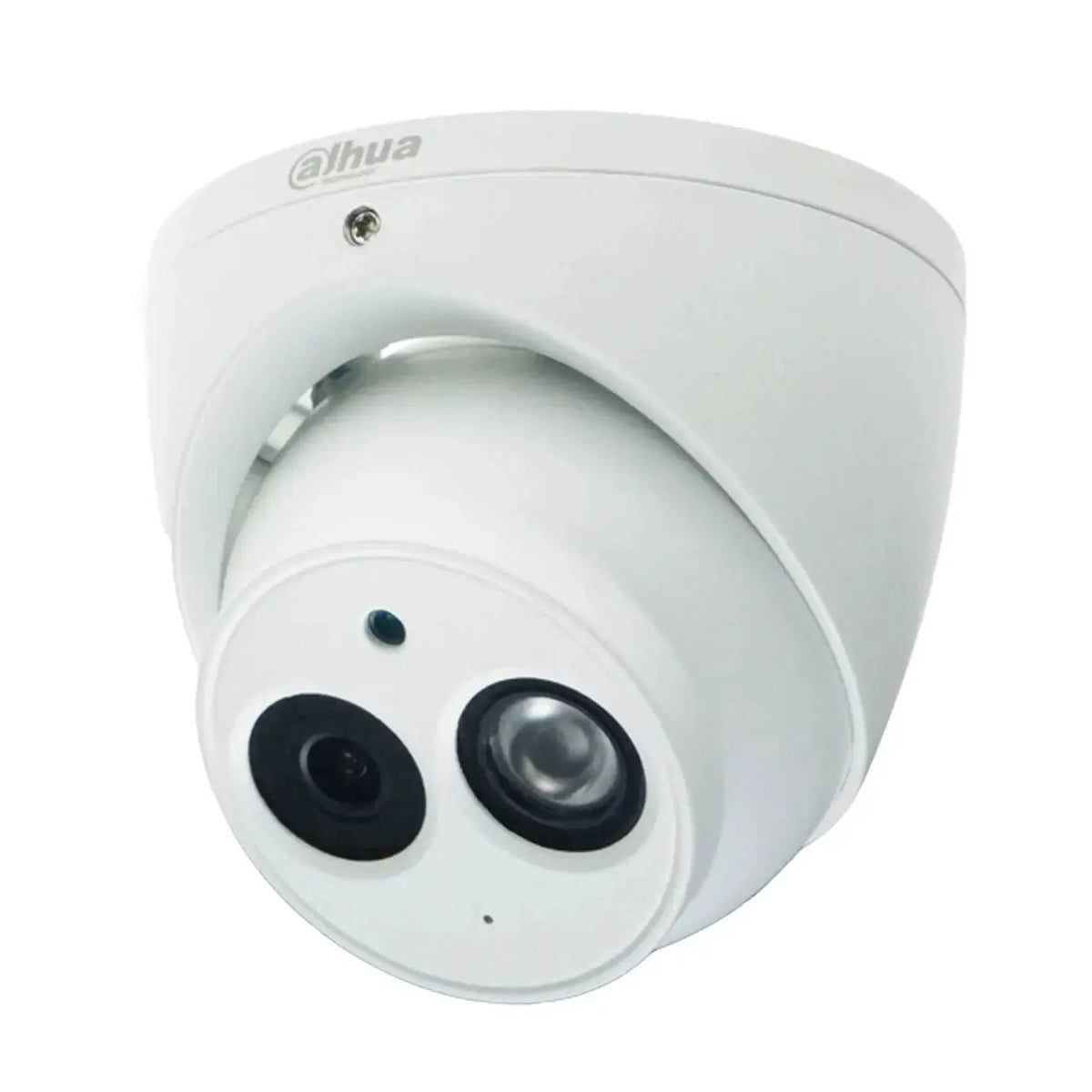

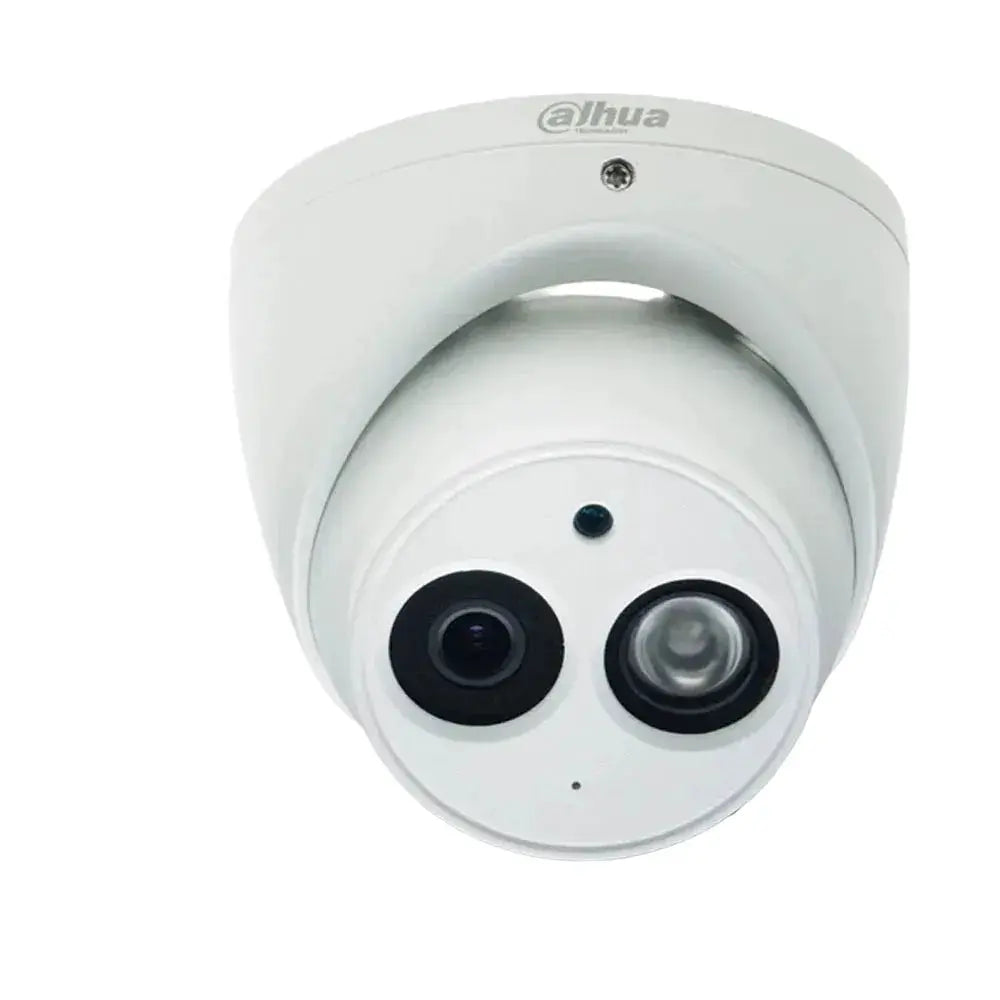

Outdoor Night Vision Security Camera | Dahua IPC-HDW4631C-A 6MP PoE Dome Surveillance

Eradicate surveillance blind spots with the Dahua IPC-HDW4631C-A, a hardened 6MP dome engineered for continuous outdoor security without wireless drops or battery replacements.

• Sensor Performance: 1/2.9-inch 6MP progressive CMOS records 3072×2048 footage at 30 fps for sharp facial identification.
• Tunable Optics: Factory-calibrated fixed glass available in 2.8mm, 3.6mm, or 6mm focal lengths to customize field of view from tight corridors to expansive lots.
• Night Visibility: Automated ICR day/night switching and a calibrated IR array deliver consistent monochrome clarity up to 50 meters after dark.
• Rugged Enclosure: IK10 impact-resistant metal-composite housing and IP67 sealing endure sub-zero freezes, intense heat, and torrential weather year-round.
• Power & Routing: Accepts standard PoE (802.3af) or DC 12V inputs, featuring built-in audio capture, ONVIF compliance, and zero-latency mobile app access.

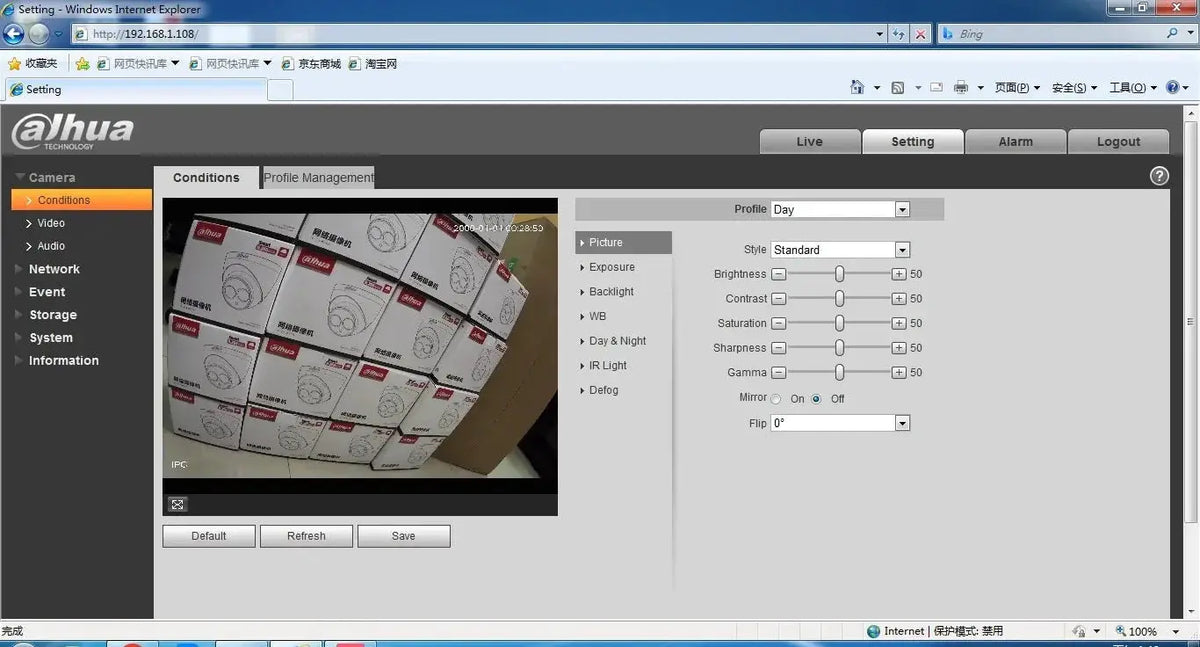

Guarantee unbroken archival of pedestrian flow, delivered freight, and transit registration across every operating hour. Precision region-of-interest masking filters out false triggers from swaying foliage, focusing recording strictly on active thresholds. H.265+ compression drastically cuts required drive capacity while retaining forensic-level sharpness for timeline playback. Advanced defogging and three-dimensional noise reduction maintain picture integrity during sudden frost or heavy downpours. Localized configuration portals streamline installation, letting operators map alert zones and assign administrative rights instantly.

Frequently Asked Questions

Q: Can I run this camera without a dedicated power brick?
A: Yes. Standard Power over Ethernet routes both data and electricity through a single CAT5e line connected to any compatible PoE switch or NVR.

Q: Is remote viewing possible from different devices?
A: Fully. The embedded web server and DMSS utility provide secure worldwide monitoring via iPhone, iPad, or Android tablets with straightforward menu navigation.

Q: Where does the recorded footage reside?
A: Archives store directly on linked NVRs, NAS networks, or local computers using RTSP or FTP protocols, removing reliance on third-party cloud subscriptions.

Q: How does the camera handle extreme backlight?
A: Real-time 120dB smart WDR automatically balances bright entryways against shaded interior corners, preventing washed-out frames during peak sun or streetlamp glare.

Q: Does it work with existing third-party recorders?
A: Complete ONVIF protocol support guarantees seamless federation with major VMS ecosystems and Dahua Smart PSS for unified channel management.

Why is this better than other products like this:

The upgraded 6MP array and intelligent bitrate allocation yield superior edge definition versus baseline 1080p units, while the reinforced IK10 chassis survives high-traffic drop tests that fracture lightweight polymer shells.

Why you should buy:

You secure enterprise-graded imaging optics inside a streamlined form factor that pairs instantly with modern network switches and intuitive administration panels, entirely removing costly contractor scheduling delays.

Product benefits:

Guarantee unbroken archival of pedestrian flow, delivered freight, and transit registration across every operating hour, backed by simplified dashboard routing that accelerates project commissioning.

Create product features:

Built on progressive scan architecture, extended fifty-meter illumination span, tri-focal glass selection, and universal standard compliance, this chassis synchronizes massive WDR throughput and audio-video tracks continuously.

• NOW SECURE YOUR PREMISES WITH ENTERPRISE-GRADE OPTICS
• GRAB HIGH DEFINITION NIGHT VISION FOR HOME OR BUSINESS
• INSTALL RELIABLE POE DOME NETWORK CAMERAS TODAY
• LOCK IN DURABLE IK10 WATERPROOF VANDAL SHIELDS FAST
• GUARANTEE 24/7 RECORDING WITH ZERO MONTHLY SUBSCRIPTIONS

• Click Here For More Cameras
• Tredruns
• Tredruns Collections
• Tredruns Best Sellers

Camera
Image Sensor	1/2.7” 4Megapixel progressive scan CMOS
IPC-HDW4631C-A	1/2.9” 6Megapixel progressive scan CMOS
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.002Lux(Color)
	0Lux(IR on)
S/N Ratio	More than 56dB
IR Distance	Distance up to 50m
IR On/Off Control	Auto/ Manual
IR LEDs	1
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8mm(3.6mm,6mm optional)
Max. Aperture	F1.6
IPC-HDW4631C-A	F2.5/F2.2/F2.0
Angle of View	2.8mm:H:104.2°,V:58.3°
IPC-HDW4631C-A	2.8mm: H: 99° V: 69.4° 3.6mm: H: 70° V: 48° 6mm: H: 47.34° V: 33.75°
Optical Zoom	N/A
Focus Control	Fixed
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Intelligence
IVS	Tripwire, Intrusion, Object Abandoned/Missing
Video

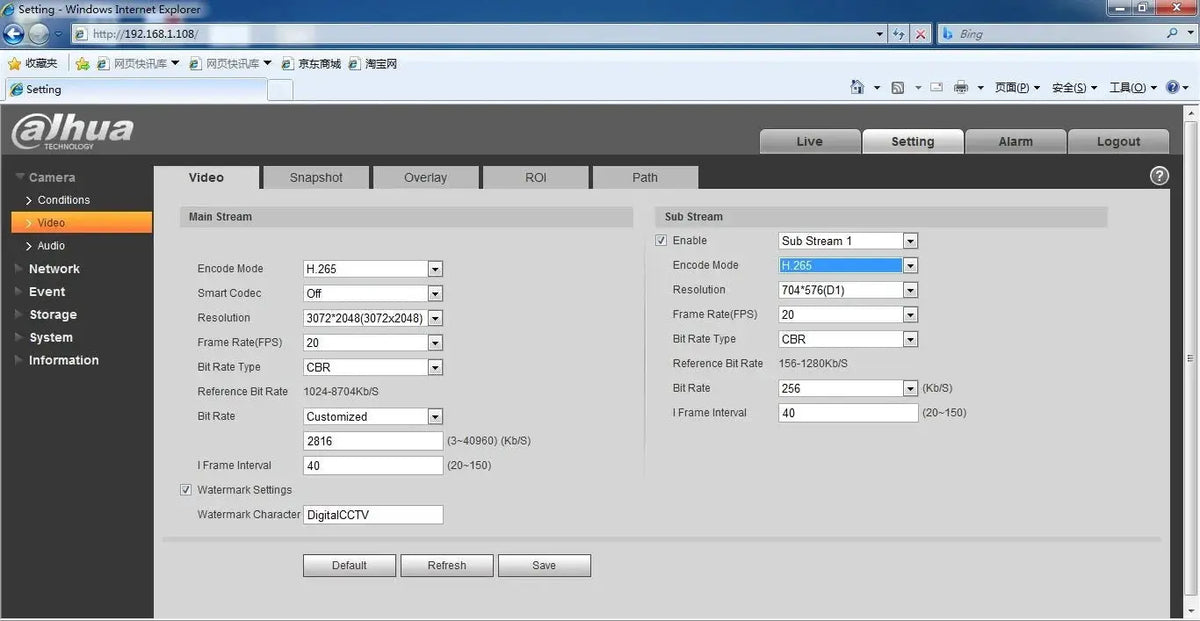

Compression	H.265+/H.265/H.264+/H.264
Resolution	4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/
IPC-HDW4631C-A	6M(3072×2048)/ 5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/
	VGA(640×480)/ CIF(352×288/352×240)
Frame Rate	50Hz:Main Stream(3072×2048@20fps),Sub Stream(704×576@20fps),Third Stream(1280×720@6fps);Main Stream(2592×1944@25fps),Sub Stream(704×576@25fps),Third Stream(1280×720@4fps)
	60Hz:Main Stream(3072×2048@20fps),Sub Stream(704×480@20fps),Third Stream(1280×720@7fps);Main Stream2688×1520@30fps),Sub Stream(704×480@30fps),Third Stream(1280×720@10fps)
Bit Rate	H.264: 24K ~ 10240Kbps H.265: 8K ~ 8192Kbps
Day/Night	Auto(ICR) / Color / B/W
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	N/A
Smart IR	Support
Defog	Support

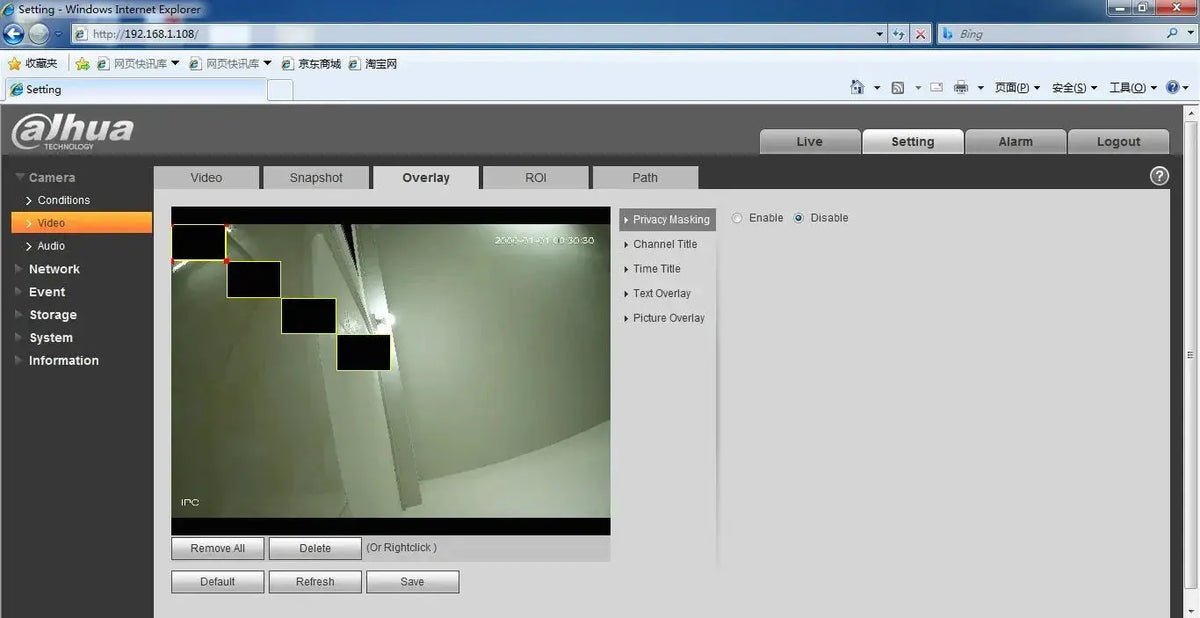

Privacy Masking	Off / On (4 Area, Rectangle)
Audio

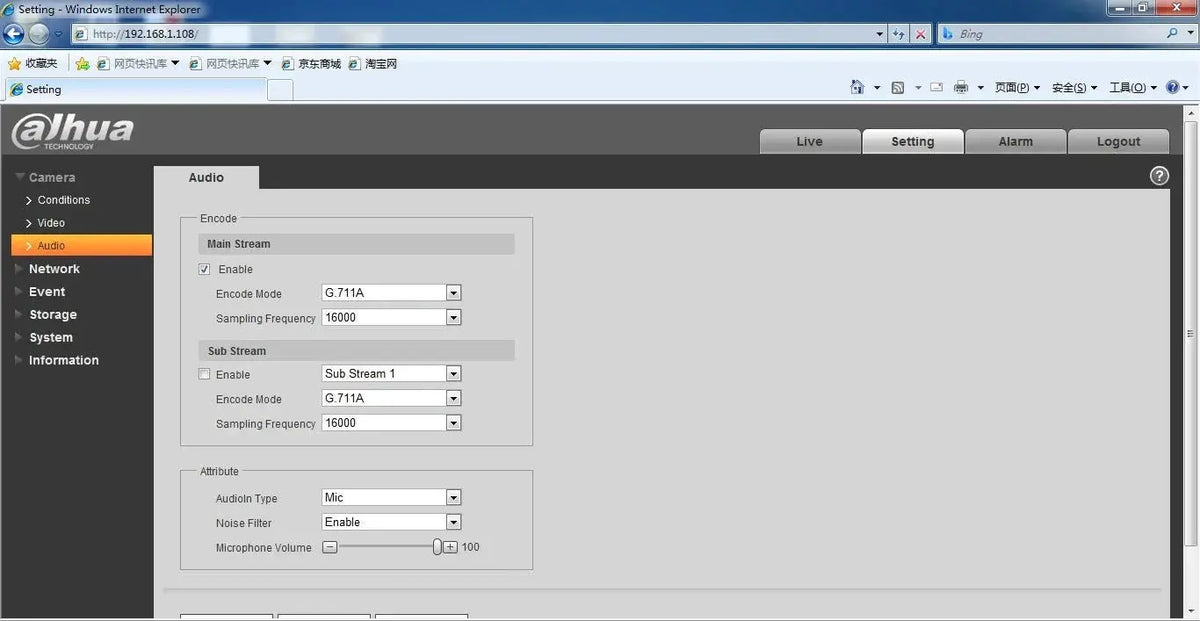

Compression	G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max User Access	10 Users /20 Users
Edge Storage	NAS
	Local PC for instant recording
Web Viewer	IE, Chrome, Firefox, Safari

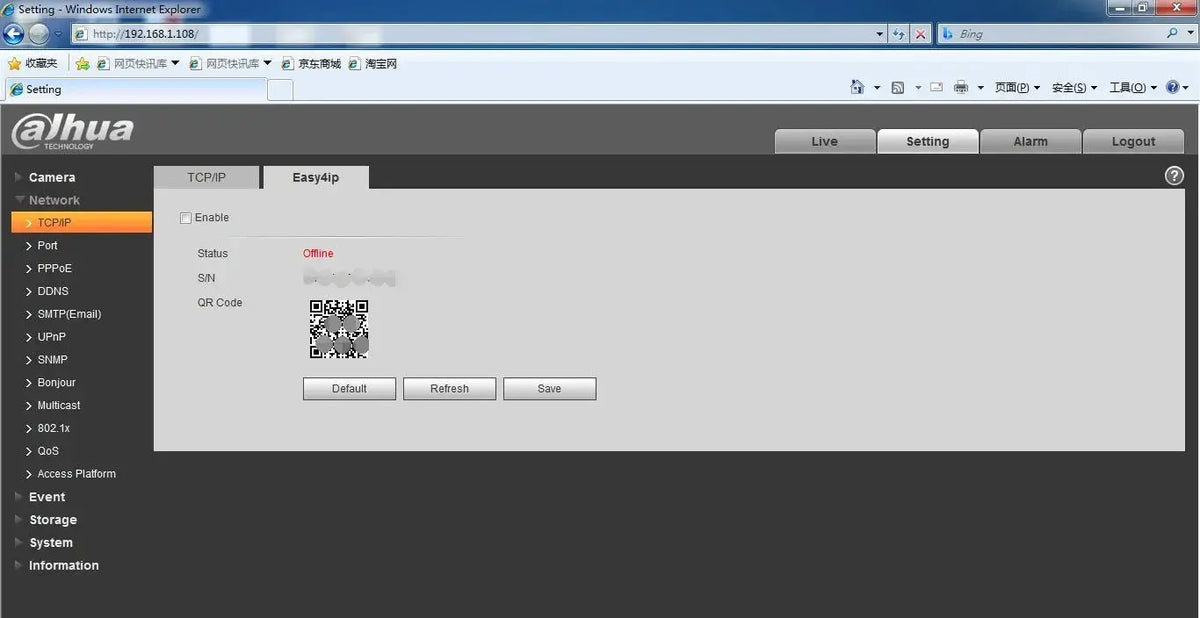

Management Software	Smart PSS, DSS, Easy4ip
Smart Phone	IOS, Android
Interface
Video Interface	N/A
Audio Interface	1/1 channel In/Out RCA Build in Mic
Alarm	N/A
Electrical
Power Supply	DC12V, PoE(802.3af)(Class 0)
Power Consumption	2.4W,<5.8W
IPC-HDW4631C-A	3.08W,<4.8W
Environmental
Operating Conditions	-40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions	-40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal+Plastic
IPC-HDW4631C-A	Metal
Dimensions	Φ110mm×95mm
IPC-HDW4631C-A	Φ106mm×94mm
Net Weight	0.32kg
IPC-HDW4631C-A	0.47kg
Gross Weight	0.46kg
IPC-HDW4631C-A	0.65kg
